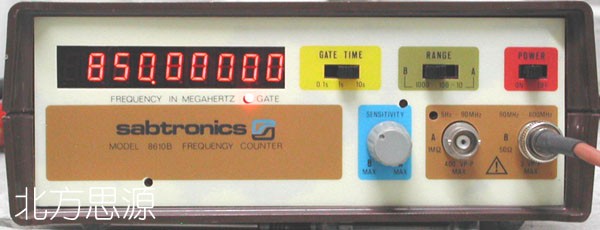

8610B
8位
(A)5Hz-90MHz
(B)90MHz-600MHz

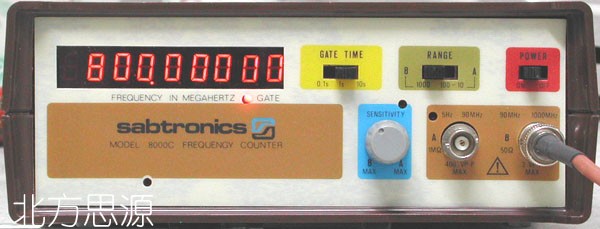

8000C
8位
(A)2Hz-80MHz
(B)10MHz-1000MHz

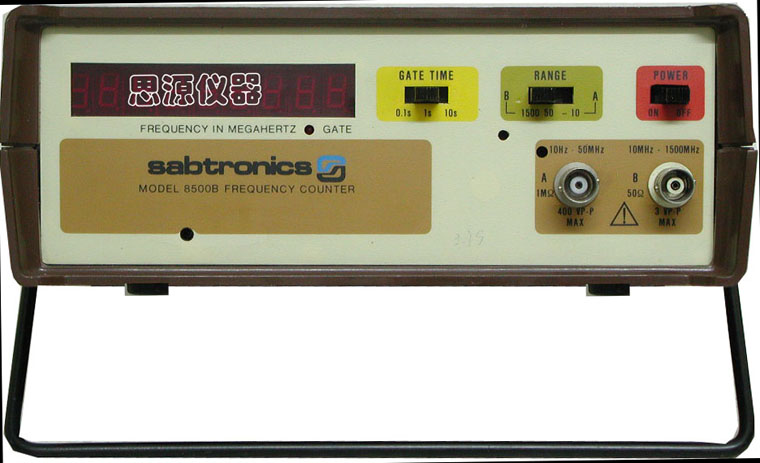

8500B
8位
(A)10Hz-50MHz
(B)10MHz-1500MHz
|
8610B |
8000C |
8500B |
厂家: 瑞士 sabtronics
尺寸: 203x165x76mm
重量: 590g
电池供电
频率范围 3档
输入阻抗:
输入 A: 1Mohm,400Vp-p MAX
输入 B: 50ohm,3Vp-p MAX
灵敏度:
20MV RMS 2Hz-10Hz
15MV RMS 10Hz-10MHz(TYPICAL 10MV)
15MV RMS 10MHz-50MHz input A.(TYPICAL 12MV)
30MV RMS 50-100MHz input A.(Typical 20 MV)
25MV RMS 100-200MHz input B.(Typical 20 MV)
15MV RMS 200-800MHz input B.(Typical 10 MV)
20MV RMS 800-900MHz input B.(Typical 15 MV)
20MV RMS 900-1000MHz input B.(Typical 15 MV)
输入保护: 400Vp-p at 2Hz declining with frequency to 3Vp-p at 1000MHz
闸门时间: 3档 0.1 sec,1sec,10sec
显示: 9位 LED 自动小数点变换 leading zero suppression,discreet LED gate indicator.
最大分辨率:
0.1Hz on 10MHz range with 10 second gate time.
1Hz on 50MHz rang with 10 second gate time.
10Hz on 600/1GHz rang with 10 second gate time
时基:
Frequency 10MHz
Temperature stabilty:+-10 PMM from 0-40 degree celcius.
setability:0.5PPM
Ageing rate:<5PPM/Year
测量精度: 1Hz + 1Digit + Time Base Error
电源: 9VDC 500MAMP via optional AC adaptor
