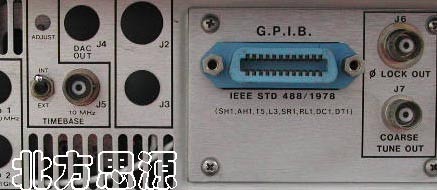

接口照片

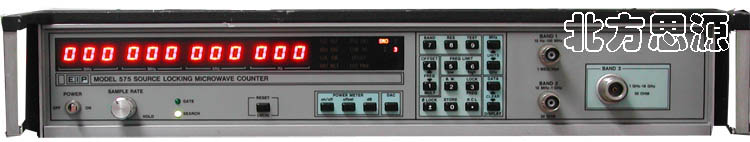

Source Locking Microwave Frequency Counter
EIP Microwave 575 Features :
10Hz to 18GHz.
Automatic source locking.
YIG-tuned RF input filter.
Excellent FM tolerance, and 10dB amplitude discrimination.
Resolution: 1Hz to 1GHz.
Measurement time: 1mSec for 1kHz resolution.
1 Sec for 1Hz resolution.
Sensitivity: -25dBm.
Up to nine preprogrammed frequencies can be stored for easy recall.
GPIB.
