100MHz/1mv/5ns/2通道
厂家: INSTEK
尺寸: 31×15×46cm
重量: 9kg
带宽100MHz、双通道，具有延迟扫描功能
10组面板设定存储功能
水平扫描自动换档功能
7项游标读值测量功能
面板锁定功能
操作设限警告声
LED显示灯
TV同步分离电路
触发讯号输出
Z轴调变输入功能
采用高稳定度及高可靠性品质的SMD技术

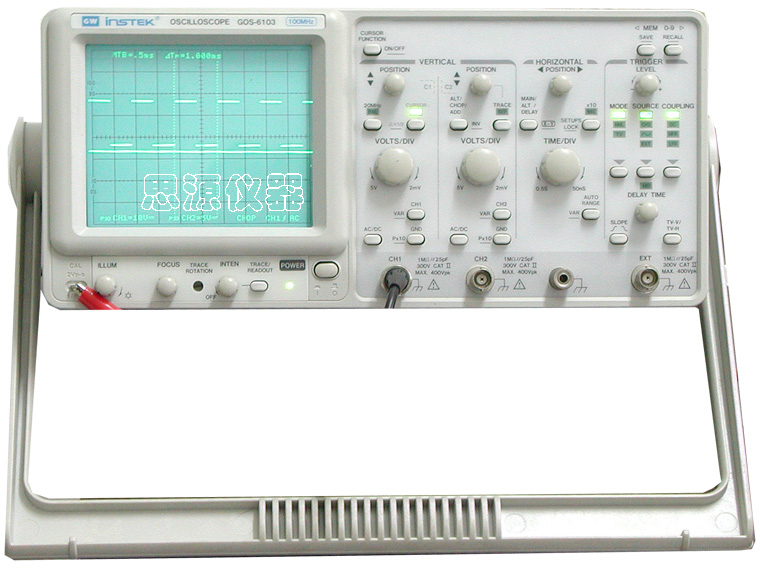

The GOS-6103 is a
100MHz, two-channel, dual-sweep, portable oscilloscope for general purpose use.
A microprocessor-based operating system controls most of the functions of the
instrument, including cursor readout and digitized panel setting. On-screen
alphanumeric readout and cursor function for voltage, time, frequency and phase
measurement provide extraordinary operational convenience. It also has the
function of auto measurement for frequency, period, pulse width and duty cycle.
Ten different user defined instrument settings can be saved and recalled without
restriction.
The vertical deflection system has two input channels. Each
channel has 11 basic deflection factors from 2mV to 5V per division. The
horizontal deflection system provides single, dual or delayed sweeps from 0.5s
to 50ns per division (delayed sweep, 50ms to 50ns per division). The trigger
system provides stable triggering over the full bandwidth of the vertical
deflection system.
Additionally, the oscilloscope offers several other features:
1) High intensity and internal
graticule CRT
The oscilloscope employs a high intensity 6-inch retangular type cathode-ray tube with
red internal graticule. It displays clear readable traces even at high sweep speeds.
Internal graticule lines eliminate parallax-viewing error between the trace and the graticule
line.
2) Temperature compensation
The
oscilloscope uses a temperature compensation circuit to reduce the drift of base line and DC balance.
3) 20MHz bandwidth limit
When it is hard to observe or trigger
a signal because a high-frequency component is superimposed on the signal, use the
20MHz BWL function to reduce the bandwidth of the vertical deflection system and trigger system
to 20MHz.
4) Automatic time base range setting
At a press of the AUTORANGE button, an optimum time base range is automatically set to a
corresponding change in input signal period. A signal period from 1.6 to 4 cycles approx. is
displayed.
5) TV triggering Exclusive
TV sync
separator circuit technology provides stable TV signal measurements on fields, frames and
lines.
6) Z-axis intensity modulation
For
applying a blanking signal from an external source. The trace displayed on the screen may be
intensity-modulated where pulse signal or time-scale marks are required.
7) Trigger signal output
The signal selected by the TRIGGER
SOURCE is available. This output may be used to connect to a frequency counter or other
instrument.
8) Panel setups lock
To avoid unintentional touch of the
setting, the feature is extremely useful for long term and repetitive
measurements that used to be performed under the same test
condition of the oscilloscope setting.
9) LED indicator and buzzer alarm
The LED’s located in the front panel
assist operation and indicated additional information. Incorrect
operation and the electrical end position of control knobs are
indicated by a warning beep.
10)SMD manufacturing technology
The instrument is built by using the
most advanced SMD technology so as to reduce the number of internal
wiring and shorten the foil route on the pc board. This will also
greatly increase the high frequency performance and the reliability of the
product.
11)Auto Measurement
A built-in 6 digits universal counter
is accurate within the range of ±0.01% and can measure frequency
between 50Hz and 100MHz.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
