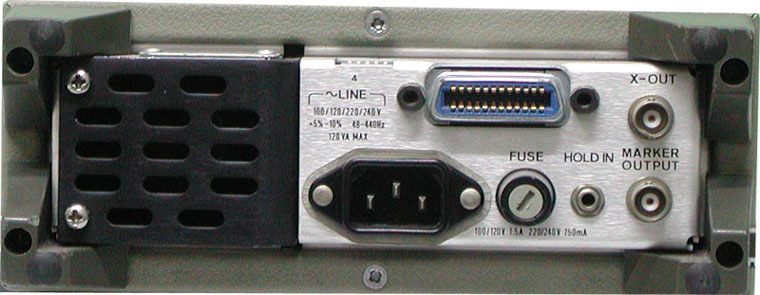

后面板

HP 8116A 可编程脉冲/函数信号发生器

厂家: 美国惠普

详细指标 pdf文档

波形 Waveforms: sine, triangle, ramp, square, pulse, haversine, havertriangle, dc

频率范围 Timing frequency range: 1 mHz to 50 MHz

频率精度 Frequency accuracy: ±3% <100 kHz, ±5% >100 kHz

占空比 Duty cycle: 10% to 90% variable below 2 MHz

脉冲宽度 Pulse width: 10.0 ns to 999 ms (6ns transitions)

脉宽精度 Pulse width accuracy: ±5%

输出幅度 Output amplitude: 10 mVpp to 16 Vpp for all waveforms

输出幅度精度 Output accuracy: ±5%

偏置范围 Offset range: 0.00 to ±7.95 V

极性 Polarity: pos or neg selectable

调制功能 AM, FM, Pulse Width Modulation

HP-IB interface

Output connector: BNC(f)
