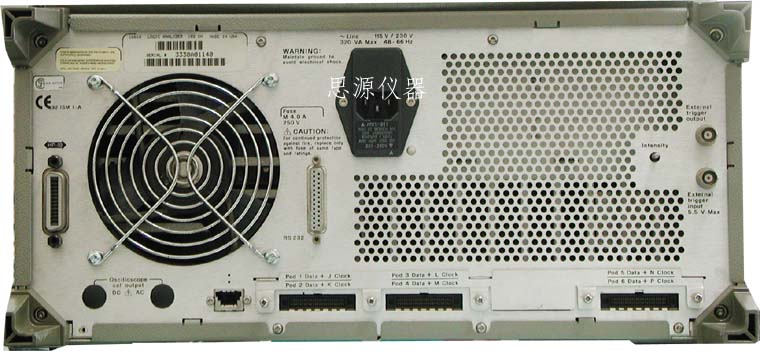

HP1661A后面板

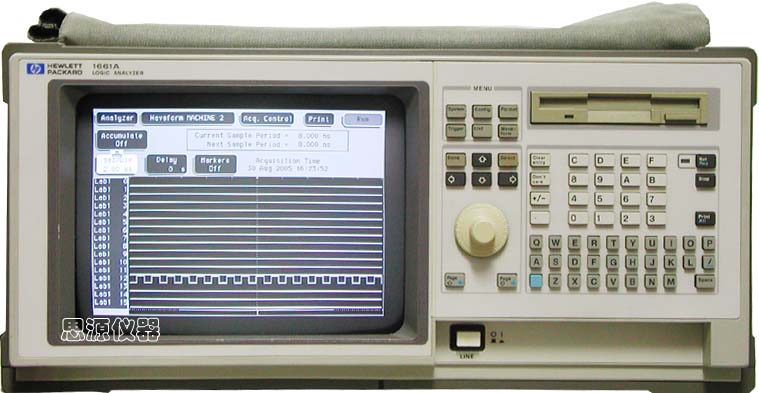

逻辑分析仪 HP 1660A系列

HP 1661A/1662A/1663A/1664A

厂家: 美国惠普

适用于软硬件调试，对各种数字电路及计算机部件的逻辑关系进行分析，从查找硬件缺陷到调试实时代码，还可在相关时刻同时观察跟踪代码和波形。
状态和定时通道102
状态分析速率：100MHz
定时分析速率：500MHz
取样/秒：100MHz带宽
状态/定时存储深度：存储深度4K/全信道 半信道中8K
建立/保持时间：3.5/0ns～0/3.5ns可调，50DPS增量。
定时分析模式和速率，传统：250MHz所有信道，500MHZ半信道
瞬态：125MHz
毛刺：125MHz半信道 最小探测毛刺：3.5ns
探头输入值、新值：100KΩ、8Pf
大规模存储器：1.44MB软盘驱动。

• State/timing memory depth: 4k on all channels, 8k on half channels
• Timing analysis modes and speeds:
  (conventional): 250MHz on all channels, 500MHz on half channels
  (transitional): 125MHz on all channels, 250MHz on half channels
  (glitch): 125MHz on half channels
• State analysis speed: 100MHz
• Minimum detectable glitch width: 3.5 ns
• Setup/hold time: 3.5/0 ns to 0/3.5 ns
• Variable setup/ hold time in the state analyzer
• External triggering to/from other instruments through rear panel BNCs
• Marker measurements
• Pre-configured trigger macros. 12 levels of trigger sequencing for state and 10 levels of sequential triggering for Timing
• Full programmability
• State/State and mixed State/Timing displays
• Both state and timing analyzers can use 10 pattern resource terms, 2 range terms, and 2 timer/counters to qualify and trigger on data. In addition, the timing analyzer has 2 edge terms
