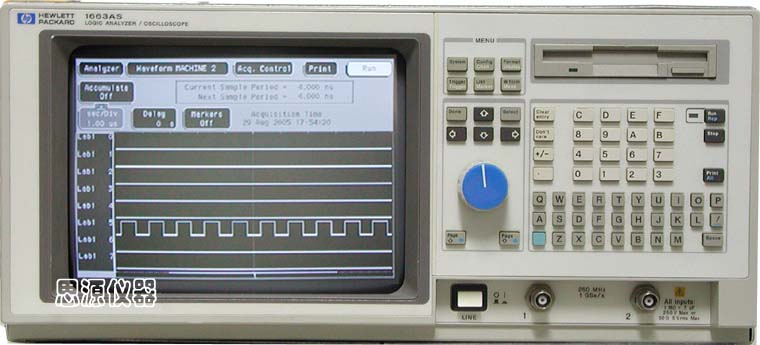

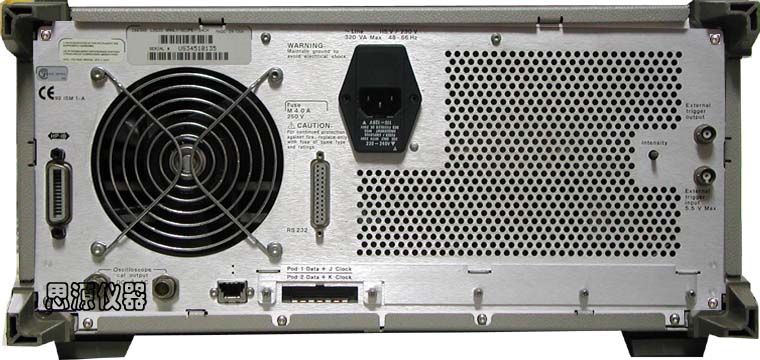

HP1663AS接口照片

逻辑分析仪 示波器 HP 1660AS 系列

HP 1661AS/1662AS/1663AS

性能指标pdf

具有逻辑分析仪和示波器的双重功能.

示波器指标: 双通道、250MHz带宽、采样率1GSa/s

逻辑分析仪指标: 100MHz状态分析,500MHz定时分析、68通道，存储深度每通道4K

有标准的HP-IB和RS-232接口.内置DOS格式3.5英寸软驱.单色显示屏

Performance Characteristics

• Maximum Conventional Timing Rate 250 MHz
• Maximum Conventional Timing Rate(half ch) 500 MHz
• Maximum Transitional Timing Rate 125 MHz
• Maximum Transitional Timing Rate(Half ch 250 MHz
• Maximum Glitch Timing Rate 125 MHz
• Memory Depth/Channel-Normal 4 KB
• Memory/Channel Half-Channel Mode 8 KB
• Maximum State Analysis Rate 100 MHz
• Setup/Hold Time 4.5 ns
• Maximum Trigger Sequence Levels 12 Levels
• Maximum Trigger Sequencing Rate 125 MHz
• No. of Pattern Recognizers 10 QTY
• No. of Range Recognizers 2 QTY
• No. of Counter Timers 2 QTY
• Input Impedance 100 kOhm
• Input Capacitance 8 pF
• No. of Scope Channels 2 ch
• Bandwidth 250 MHz
• Simultaneous Maximum Sampling Rate/ch 1 GSa/s
• Max. Record Length 8000 pt/sec

Programmability/Connectivity

• User Interface Proprietary
• Ports to Peripheral Devices HPIB,RS232
• Data Storage Type FDD,HDD
