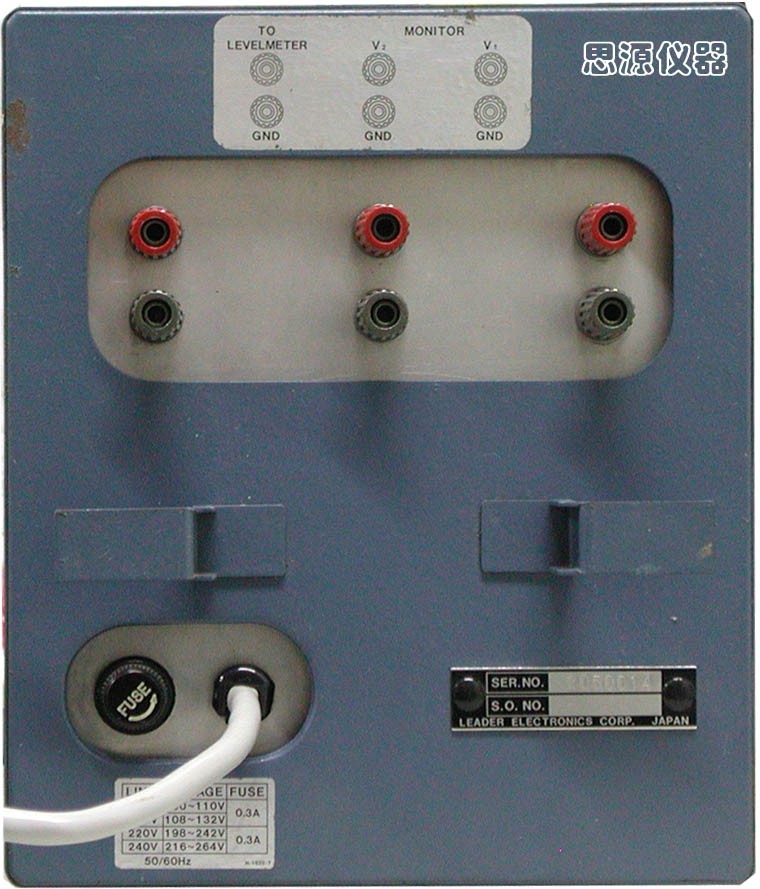

后面板厂家: 日本利达
尺寸: 20×17×25cm
重量: 5kg
常用于测量立体声录音机、汽车立体声音响、立体声接收机等两个独立通道的平衡。
The LVC-94 is a zero-center wide angle indication
type voltage comparator which indicates a value proportional to the logarithmic
value of the ratio of two voltages such as stereo signal in low frequency,namely
dB value.From the pointer directon of the zero center type meter,it is possible
to identify which voltage is higher(between the two voltage indicated).also,the
wide angle meter and equally divided dB scale assure easy reading.The instrument
permits efficient measurement of the channel separation degree of stereo receiver,stereotape-recorder,car-stereo,etc.
specifications
measuring range:46dB full scale,1 range
input frequency range:frequency range:100Hz-10KHz at 5mv-5v
frequency range:100Hz-4KHz at 2mv-5v
frequency range:100Hz-1KHz at 1mv-5v
measuring accuracy:within ±1.5dB(at 20°C)
input impedance:100KΩ approx.90pF
