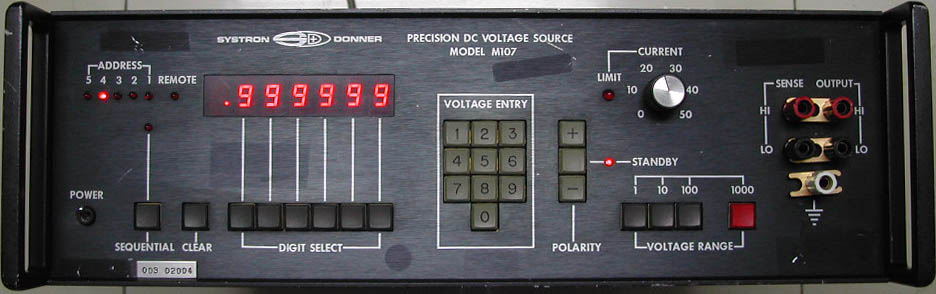

精密直流电压源 M107 Precision DC Voltage Source

厂家：Systron Donner

The Systron Donner M107 is a Precision DC Voltage Source with programmable or manual control of output voltage, polarity, and range, 6-digits of resolution and ±0.002% accuracy on all ranges，that's 20 ppm! Use it on a bench or in a rack front and rear panel outputs are just another added convenience the M107 has to offer.

特点：

Voltage output is variable from 1 µV to 1 kV, 50 mA max，with ±0.0001% regulation, line or load
Isolation DC output can be floated up to ±500 Vdc from chassis
Polarity selection +, -, and standby(short circuit across output terminals)

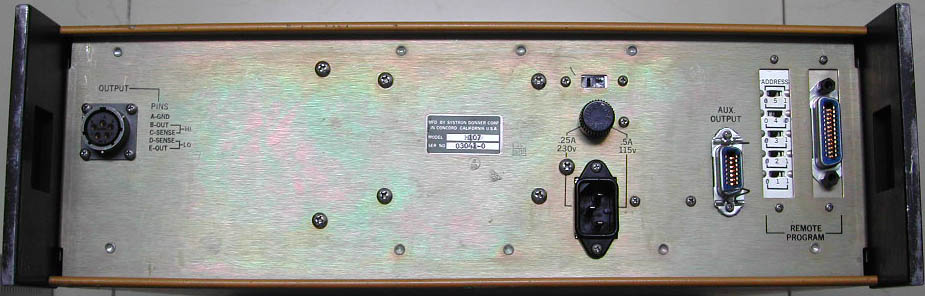

Output Terminals, five terminals on the front panel and five pin connector on the rear panel (2) DC output, (2) sense；(1) chassis ground
Warm-up time is 1 hour to full specifications
IEEE-488 Interface
Manual control of output voltages, polarity, range and current via the front panel
Six digits of resolution

输出指标

输出范围	最大输出电压	Increments	最大输出电流	输出电阻	精度
1V	0.999999	1μV	*	200Ω	±0.002% of range All Ranges
10V	9.99999	10μV	50mA	.0002Ω
100V	99.9999	100μV	50mA	.002Ω
1000V	999.999	1mV	50mA to 120V 5mA to 1000V	.02Ω .2Ω
