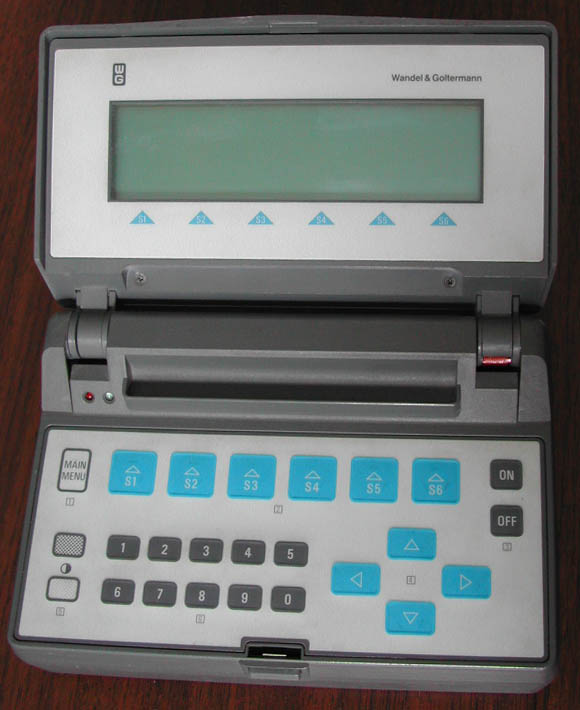

PFA-35 误码测试仪 通讯分析仪 E1 and Data Testers

二手仪器仪表 销售 租用 修理

生产厂家: Wandel & Goltermann

详细指标--pdf文档

Highlights

• Test solutions for E1 and G.703, V.11/RS-442, V.24/RS-232, V.35, V.36/RS-449, and EIA-530 data circuits operating at 50 bps to 2 Mbps.
• Large variety of easy-to-download software options to enhance testing functionality.
• Handheld, rugged, and battery operated. Ideal for field use.
• Intuitive, softkey, menu-driven user interface.

应用领域

• E1 Physical Layer testing including n x 64 kbps BERT, VF, Round Trip Delay, and Jitter.
• E1 Service testing including Frame Relay and GSM.
• Quality of Service (QoS) testing to G.821, G.826, and M.2100 ITU-T recommendations.
• Error and alarm generation and analysis.
• Primary Multiplexer and Demultiplexer testing.
• V.11/RS-442, V.24/RS-232, V.35, V.36/RS-449, and EIA-530 BERT testing.
• Enhanced Datacom testing including X.50, HCM, and V.110 subrate circuit testing, status monitoring of V interface control and signaling lines, and V.24 async modem testing of V interface round trip delay.

主要特点

• G.703 (balanced and unbalanced) Tx/Rx, V.11/RS-442, and V.24/RS-232 test interfaces are built-in. V.35, V.36/RS-449, and EIA-530 test interfaces are available via cable adapters.
• Unique "Troubleshooter Page" gives an instant overview of network performance.
• Autoconfigure to circuit under test with a single key press.
• Multiple language support.
• Histogram display of results to analyze time-related errors.
• Alarm and error status LEDs give clear indication of problems.
• Remote operation and control.
• Results storage and printing.
• Battery operated for up to eight hours of continuous use.

咨询电话: 132- 4173- 5460 , 邮箱: 52634729@QQ.com
