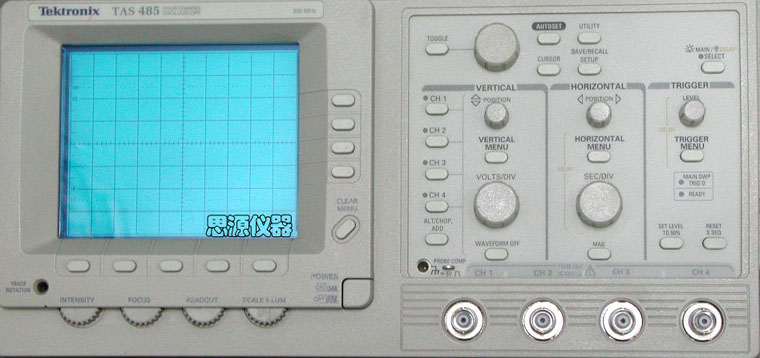

示波器 TAS485

TAS485 Performance Characteristics

Bandwidth

200 MHz

Rise time

1.8 ns

Number of Channels

4 ch

Min. Vertical Sensitivity

2 mV/div

Maximum Vertical Sensitivity

5 V/div

Vertical(or Deflection Factor) Accuracy

2.5 %

Input Coupling

AC,DC,GND

Input Impedance

1 MOhm

Maximum Input Voltage

400 V(dc+p

Main time base - lowest

10 ns/div

Main time base - highest

0.5 s/div

B Sweep Time Base (low)

10 ns/div

B Sweep Time Base (high)

5 ms/div

Time base Magnification factor (X?)

x10

Timebase accuracy

2 %

Trigger Source

External,Internal

Trigger Modes

Auto,Normal,TV

Trigger Sensitivity

0.3 mV

TAS485 Programmability/Connectivity

User Interface

Proprietary

Test Pattern Storage

4 Patterns
