模拟示波器

厂家: 美国泰克

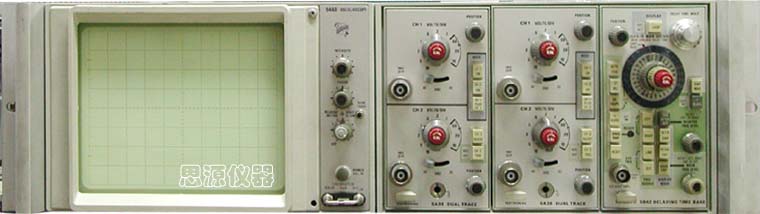

主机 TEK 5440: 60MHz

Features of the 5000 Series oscilloscope include:

• Large CRT
• High gain, differential amplifiers
• Easy conversion from rack mount to bench to rack mount

插件 Tek 5A38 性能指标pdf

• The 5A38 Dual-Trace Amplifier Plug-In is a 35MHz plug-in for use only in 5400-Series Mainframes. It features 10 mV/div sensitivity and CRT readout of deflection factor
• Bandwidth: dc coupled, to >35MHz

插件 Tek 5B42 性能指标pdf

The 5B42 Dual Time Base Plug-in is designed for use in 5400 Series mainframes. It features a sweep rate from 10 ns/div to 5 s/div and crt readout of the sweep rate selected.
The unit features delayed-sweep rates up to 10 ns/div.

• Sensitivity of 50 mV/div

• Triggering to 50MHz
