This set can be used to completely noise load a 6
to 1200 channel frequency multiplexed, FDM, and radio communications system. The
TF2091B Noise Generator, when equipped with a complement of up to nine of the
appropriate high pass, bandstop, and low pass filters, fully noise loads your
system across its baseband. Typically, the bandstop filters are selected to test
at distributed points across the baseband such as low, mid, and high channels.
when equipped with bandpass filters and local oscillators, with the same
frequencies as the bandstop filters in the noise generator, measures the noise
injected into selected channels by the intermodulation distortions and thermal
noise of the radio/amplifiers system. The baseline NPR (noise power ratio) of
the system can be determined during initial installation testing or
commissioning. Or, inservice testing can be done on a quiet or out-of-band
channel.
Specifications include:
- noise band 12kHz to 12360kHz
- noise power level
-14.5 dBm/kHz
- total power to +20 dBm
- 输出阻抗 75欧
- effective
receiver bandwidth 2.2kHz
- NPR to 75 dB

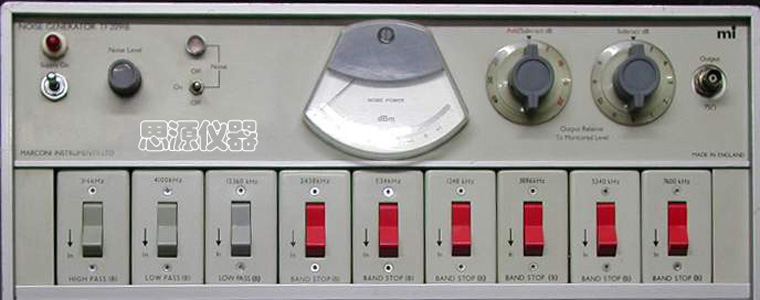

仪器面板:
31kHz HIGH PASS(B)
4100kHz LOW PASS(B)
12360kHz LOW PASS(B)
2438kHz BAND STOP(B)
534kHz BAND STOP(B)
1248kHz BAND STOP(B)
3886kHz BAND STOP(B)
5340kHz BAND STOP(B)
7600kHz BAND STOP(B)
Output Relative to Monitored Level
Add/Substract dB : 40,30,20,10,0,5,10,15,20
Substract dB : 0,1,2,3,4,5,6,7,8,9,10,11
