厂商:美国B+K DYNASCAN CORPORATION
尺寸:8.13×28.70×19.56cm
重量:1.31kg

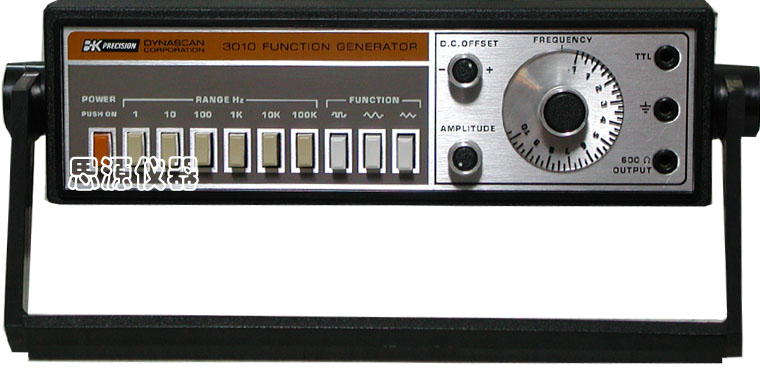

The B&K-PRECISION Model 3010 function generator is a versatile signal source that can be used in a variety of engineering,indusrial,educational and hobbyist applications.the wide frequency range(.1Hz to 1MHz)for all functions(sine,square,triangle and TTL output)encompasses subaudible,audio,ultrasonic and RF applications.The continuously variable DC offset control and provision for external VCO control further enhance the versatility of this instrument.the human-engineered case lends itself to bench use as well as easy protability.
SPECIFICATIONS
basic output:square,sine,triangle,DC and TTL Square wave (separate output jack)
frequency range:0.1Hz to 1MHz in six ranges.
External frequency control:VCO;greater than 100:1 on any frequency range(linear).with FREQUENCY dial set at 0.1,a 0-to-5.5v ramp input will produce a 100: frequency change.frequency increases with positive voltage.
Maximum input:±20v peak
input impedance:1000 ohms,nominal
