35MHz/10v-2mv/0.5s-0.2μS
厂家: 飞利浦
尺寸: 33×12×44cm
重量: 15kg

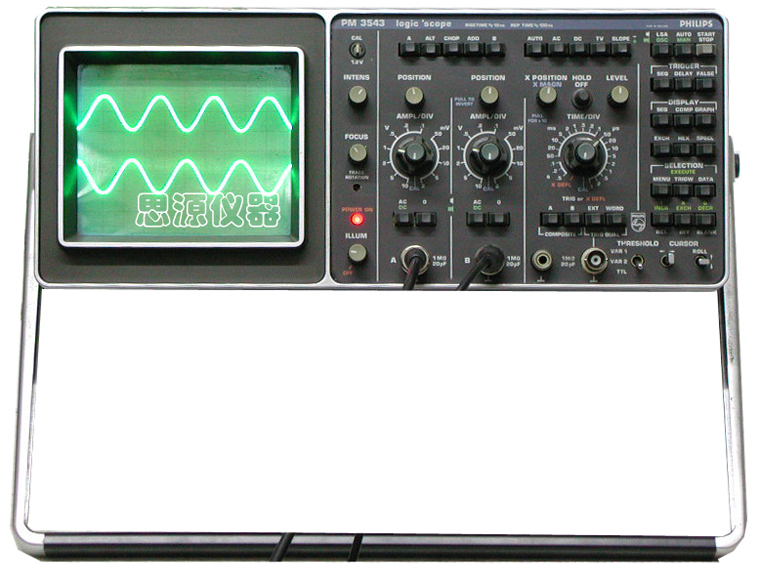

The PM3543 is a compact, portable instrument, featuring ergonomic design and
extensive measurementcapabilities.
This logic-scope is a combination of logic state-analyzer and dual-trace
oscilloscope.
The sophisticated logic state-analyzer is provided with a number of functions
which make the instrumentcapable of allowing data to be examined from all types
of microcomputer-based systems.
2 clocks, 3 qualifiers, 21 data channels and 4 trigger modes parallel,
quasi-parallel ,sequential and immediatesequential triggering -allow the user to
monitor computer programs to indicate all kinds of software problems. Different
modes of displaying data on the screen, a cathode ray-tube calibrated into 8x10
divisions,gives the opportunity of observing captured data in different formats.
The high performance dual-trace oscilloscope enables the user to trace timing
problems in a frequency rangefrom 0 - 35 MHz. The dual-trace oscilloscope can be
used in combination with the wide range of trigger facilities of the
state-analyzer, which enables the user to observe timing problems in a
computer-based system.A double-insulated power supply enables the frame ground
to he directly connected to floating ground circuitsprovided this grounddoes not
carry live potentials.
Interference by ground currents, as is frequently experienced with grounded
instruments is also substantiallyreduced.
Due to the extensive range of analyzer-oscilloscope functions, combined in one
compact, portable instrumentit is ideal for research, production, testing,
trouble shooting, maintenance, field-service and educationalapplications.The
wide range of operation of the logic-scope can be further extended by the use of
the following options:
RS 232C serial and audio cassette interface
IEC 625 parallel interface
RS 232C serial and audio cassette interface and disassembly package.
IEC 625 parallel interface and disassembly package.
