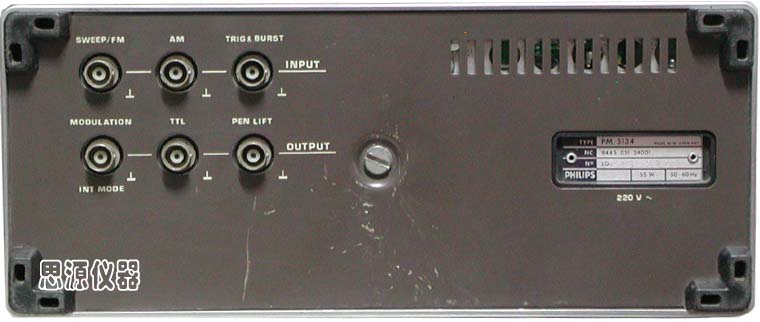

后面板厂商: 飞利浦
尺寸: 31 x 14 x 39cm
重量: 6.5kg
Nominal range: 0.001Hz-20MHz
Display 3.5 digits (7-segment LED)
Waveforms:sine, square, triangular; positive and negative pulse with or without
DC offset
DC voltage without AC
Max. open circuit AC voltage: 20 V p-p
DC voltage offset: -5V to + 5 V
Internal sweep: linear over two decades single or continuous in between 5 ms to
100 s
External sweep
Internal burst continuous or single, repetition time 0.05 ms to 100 s
External burst
Modulation: internal FM or AM, sinus; 0.01 Hz to 20 kHz
