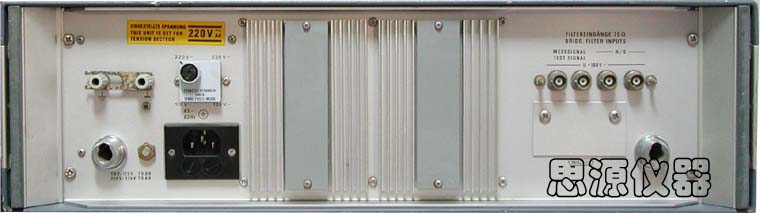

后面板厂商: 德国 Rohde & Schwarz
尺寸: 50x16x47cm
重量: 18 kg
The Rohde & Schwarz Video Noise Meter UPSF 2 measures voltages occurring in
transmission systems either in the unweighted mode from 40 Hz to 10 MHz or in
the weighted mode with the appropriate filters incorporated.
The video level / chroma noise meter plugin UPSF 2 - E2, supplied with the set,
affords further measuring possibilities.
- The relevant IEC and CCIR specifications are satisfied
- Automatic switch over to 625 line or 525 line systems (dual standard unit),
using the standard-dependent filters
- Free choice of test point: full field or any test line
- Measurement of true RMS and peak values, autoranging over 80 dB
- Alphanumeric readout of measured value and operational status.
