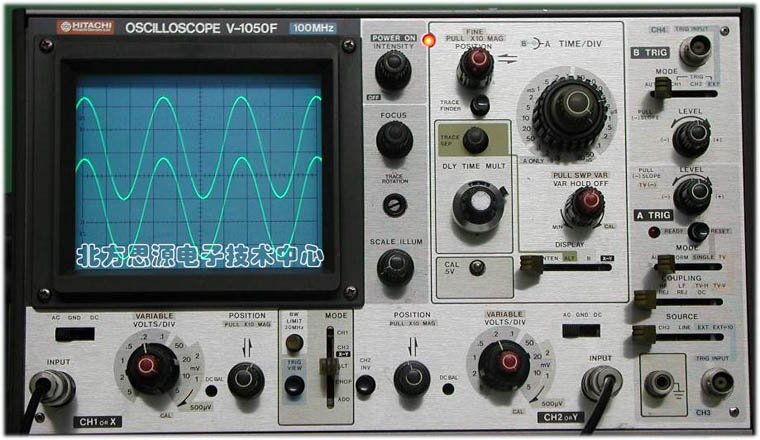

模拟示波器 V-1050F

100MHz/0.5mv/2ns/双踪 双时基扫描

厂家: 日本日立
尺寸: 32×19×42cm
重量: 11kg

●示波管 Hitach 15OBNB31

Screen type : P31 phosphor standard

内刻度

自动聚焦

●Z-AXIS

DC—coupled, positive—going signal decreases

intensity: 5Vp-p

Signal causes noticeable modulation at normal intensity: DC to 3.5MHz.

Input impedance          Approximately 15 kΩ

Maximum input voltage     20 V (DC + AC peak)

Coupling                DC

●VERTICAL  DEFLECTION  (2 Identical Channels)

Bandwidth and Rise time

DC to at least 100MHz and rise time 3.5ns or less. DC to at least 5MHz and rise time 7Ons c less at magnifier extends.

Lower -3dB point, AC coupling 10Hz or less.

Deflection Factor

5mV/div to 5V/div in 10 calibrated steps, 1-2-5 sequence. Uncalibrated continuous control extends deflection factor to at least 12.5 Volt per division in the 5 Volts/div position. x10 magnifier increases sensitivity of each deflec­tion factor setting to 500V/div.

Accuracy

xl  ±2% (+10°C to +35°C)   ±4% (0°C to +50°C)

x10 ±3% (+10°C to +35°C)   ±5% (0°C to +50°C)

Additional error for magnifier ±1% Display modes

CH1, CH2 (normal or invert), Alternate, Chopped (250kHz rate), Added

Input Impedance

1M ohm ±1.5% in naraHel with 2.8nF ±3PF

Maximum Input Voltage

250V (DC + AC peak) or 500Vp-p AC at 1kHz or less

Input coupling

AC-GND-DC

Delay Line

Permits viewing leading edge of display waveform.

Four—trace Display (TRIG VIEW)

Display simultaneously channel 1, channel 2, channel 3 (A EXT TRIG signal), channel 4 (B EXT TRIG signal).

The deflection factor of channel 3 and channel 4 is approx. 200mV/DIV.

       • Sensitivity  INT:  1/1 ± 30% of screen area

EXT: 0.2 V/DIV ± 30%

       • Frequency band  EXT: DC to 70 MHz (-3dB)

       • Position         CH3: Horizontal 100% graticule line of screen ± 1 div (trigger level knob is set at the center).

CH4: Horizontal 0% graticule line of screen ± 1 div.

●HORIZONTAL DEFLECTION

Time Base A

20ns/DIV to 0.5s/DIV in 23 calibrated steps, 1-2-5 sequence. Uncalibrated continuous control extends deflection factor to at least 1.25 seconds per division in the 0.5 s/DIV position. x10 mag extends fastest sweep rate to 2ns/DIV.

Time Base B

20ns/DIV to 50ms/DIV in 20 calibrated steps 1-2-5 sequence. x10 mag extends fastest sweep rate to 2ns/DIV.

Accuracy

±2% (+10°C to +35°C)

±4% (0°C to +50°C)

Additional error for magnifier +2%.

A sweep variable     Present

Horizontal Display Modes

A only, A intensified, Alternate, B delayed, X-Y operation.

Delayed sweep position  adjustment : 1 div or less - 10 div or more

Delay Time Jitter                 : Better than 1:20,000

●TRIGGERING A AND B

A Trigger Modes

Automatic, Normal, Single sweep, TV (TV-H or TV-V)

A Trigger Hold—off

Adjustable control permits a stable presentation of repetitive complicated waveform.

A Trigger Source

Internal (Ch1, Ch2), Line, External, External ÷10

A Trigger Slope

+ or –

TV Sync Polarity

TV(+) or TV(-)

Triggering level variable range: For both A and B. Internal;

±4div or more

External; approximately ±1V

External÷10; approximately ±10V

Triggering sensiti- For both A and B. However, vity and frequency ( ) is only for B

Frequency   Internal  External  External÷10
DC(30Hz)-10MHz  0.3div  50mV  500mV
10MHz -100MHz  1.5div  150mV  1.5V

TV—V sensitivity:  SYNC section less than 0. 7div or 200mV

AUTO low band :   Approximately 30Hz (When Time Base A is 2Ons/DIV to 2ms/DIV)

A Trigger Coupling

AC : 30Hz to full bandwidth

 HF REJ: attenuates signals below approx 4kHz

LF REJ: attenuates signals above approx 4kHz

DC : 0 to full bandwidth

A External Trigger Input Impedance

1M ohm +20% in parallel with 28PF +6PF (However setting HF REJ and LF REJ are not included.)

Maximum Input Voltage

250V (DC + AC peak at 1kHz or less)

500Vp-p AC at 1kHz or less

B Trigger Modes and Source

Automatic, Normal (Ch1, Ch2, External)

B Trigger Slope

＋ or －

Trigger Coupling

AC only; 30Hz to full bandwidth

●X-Y OPERATION (CH1; Horiz. CR2; Vert.)

Deflection Factor

Same as vertical deflection

Accuracy

Y: ±2% (+10°C to +35°C), ±4% (0°C to +50°C)

X: ±5% (+10°C to +35°C), ±7% (0°C to +50°C)

X-Bandwidth

DC to at least 2MHz

Phase Error

3° or less from DC to 2MHz
